WIFI Specification

Item

Content

Standard

IEEE802.11b/g/n, 2.4G, 2*2 MIMO,AP model, Station model(optional)

Bandwidth

IEEE802.11b/g: 108Mbps (max)
IEEE802.11n: 300Mbps (max)

Security

WEP, WPA, WPA2, etc.
WPS (optional)

TX power

20dBm(11n), 21.5dBm(11g), 26dBm(11b)

RX sensitivity

<-75dBm@54Mpbs

Hardware System

Item

Content

CPU

High-performance 32bits CPU

FLASH

16MB(Extendable to 64MB)

DDR2

128MB

TF

8GB~32GB(optional)

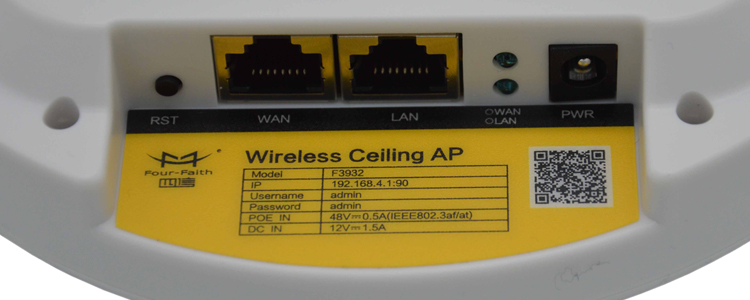

Interface type

Item

Content

WAN

1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

LAN

1 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

Indicator

“Power”、“System”、“WIFI”、“WAN”、“LAN”

Antenna

Built-in 2.4 GHz antenna: 3 dbi

TF

Standard TF card interface

Power

Standard 3-PIN power interface, reverse-voltage and overvoltage protection

Reset

Restore the router to its original factory default settings

Power supply

Item

Content

Standard Power

DC 12V/1.5A or POE supply

Power range

DC 5~36V or POE 44～57V

Working current

<270mA (12V)

Standby current

<220mA (12V)

Physical Characteristics

Item

Content

Housing

Ceiling installation and wall mounting

Dimensions

168x168x51 mm

Weight

450g

Other  Specification

Item

Content

Operating Temperature

-35~+75ºC（-31~+167℉）

Storage Temperature

-40~+85ºC (-40~+185℉)

Operating Humidity

95% (unfreezing)
