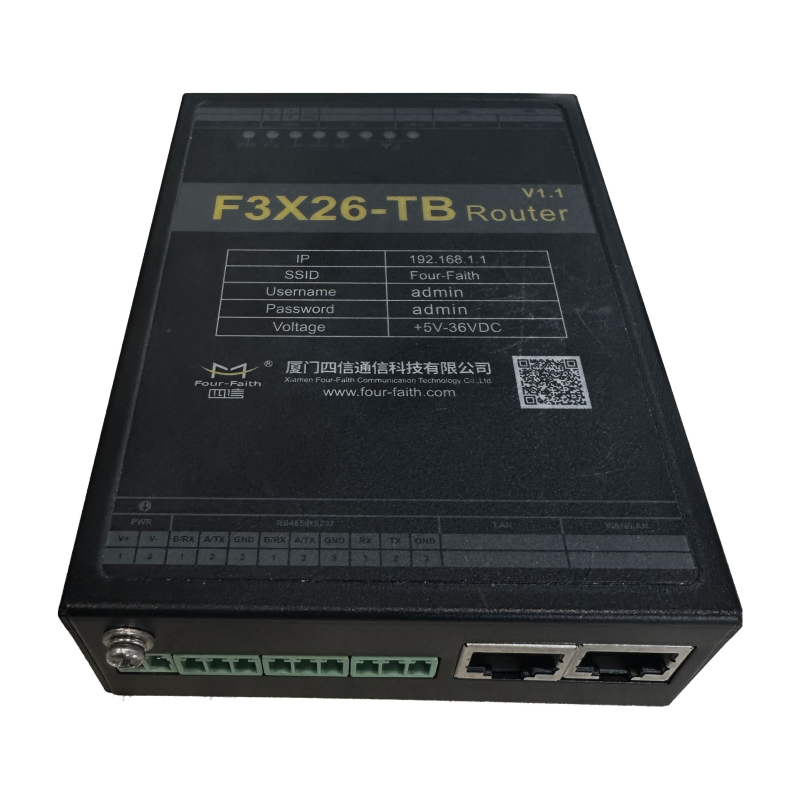

Wireless 4G LTE Router F3X26-TB

● Size: 126 x 89 x 30mm

● Outer shell: metal, IP30 protection level

● Standard ports: RS232, RS485, Ethernet LAN&WAN, Wi-Fi

● CPU: industrial-grade 32-bit processor & wireless module

● System: watchdog design, complete mechanisms, stable operation

● Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

● OS Linux

● VPN GRE IPsec

Trial Sample

Features
Specifications
Download

Four-Faith 4G Wireless LTE Router F3X26-TB

● Four-Faith's F3X26-TB is an IoT wireless communication router. It plays the role of transmitting long-distance wireless data through public networks in real IoT-applied solutions and other smart interactive scenarios.

● Equipped with an industrial-grade 32-bit processor and wireless module, and with the watchdog system, the F3X26-TB LTE router is able to keep its stable operation even in harsh industrial environments.

● With standard ports including RS232 and RS485, the F3X26-TB LTE router has the capacity to connect multiple devices simultaneously for wireless data transmission.

● The F3X46-TB LTE router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.

Wireless 4G LTE Router

SPECIFICATIONS
Cellular Specification
Item	Content
Standard & Band	Support Full-NetCom: LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Bandwidth	FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps DC-HSPA+: Downstream rate 42Mpbs, uplink rate 5.76 Mbps HSPA+: Downstream rate 21Mpbs, uplink rate 5.76 Mbps UMTS: 384Kbps
Transmit Power	<23dBm
Sensitivity	<-97dBm
WIFI Specification
Item	Content
Standard & Band	IEEE802.11b/g/n
Bandwidth	IEEE802.11b/g: 54Mbps (Maximum)
Security	IEEE802.11n: 144Mbps (Maximum)
Transmit Power	Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Sensitivity	15±2dBm
Hardware System
Item	Content
CPU	Industrial-grade CPU
FLASH	16MB (optional for 64MB)
DDR2	128MB (optional for 256MB)

Interface
Item	Content
WAN Interface	1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD (can be used as a LAN)
LAN Interface	1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial Port	3 x RS232, 1 x 485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional)
LED Indicators	“PWR”, “SYS”, “LAN”, “WAN”, “NET”, Signal Indicator
Antenna Interface	Cellular: Standard SMA female antenna interface, characteristic impedance: 50 Ω
SIM/UIM Slot	WIFI: Standard SMA male antenna interface, characteristic impedance: 50 Ω
Power Interface	Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual-SIM card option
Reset Button	Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection

Power
Item		Content
Input Voltage		DC 12V/1.5A
Accepted Range		DC 5~36V
Power Consumption
Work Mode		Consumption
Standby		95~135mA@12VDC
Communicating		165~220mA@12VDC
Physical Properties
Item		Content
Casing		Metal casing, IP30 protection level
Dimensions		126mm x 89mm x 30mm (excluding antennas and mountings)
Weight		320g
Others
Item		Content
Operating Temperature		-35～+75℃
Storage Temperature		-40～+85℃
Relative Humidity		95% (non-condensing)
ORDERING INFORMATION
Model	Description		WAN	LAN	Cellular Antenna	WIFI Antenna	SIM/ UIM
F3X26-TB-FL	FDD/TDD-LTE WIFI Router		1	1	1	1	1
F3X26-TB-L	LTE WIFI Router		1	1	1	1	1
F3X26-TB-FL-SIM2	FDD/TDD-LTE WIFI Router		1	1	1	1	2
F3X26-TB-L-SIM2	LTE WIFI Router		1	1	1	1	2

Specification

F3X26-TB 4G Industrial Router Specification V2.0.0
