LoRaWAN Indoor Gateway F8926-GW

LoRaWAN Indoor Gateway

● Certification: CE

● LoRa protocols: LoRaWAN, LinkWAN

● Receiver sensitivity: -142dbm @LoRa

● Outer shell: metal, IP30 protection level

● Standard ports: RS232, Ethernet WAN/LAN, Wi-Fi

● CPU: industrial-grade 32-bit processor & wireless module

● System: watchdog design, over-voltage protection, stable operation

● Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

Trial Sample

Features
Specifications
Download

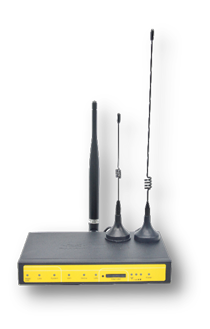

Four-Faith LoRaWAN Indoor Gateway F8926-GW

● Four-Faith’s F8926-GW is a wireless communication base station that is based on the LoRaWAN protocol. It plays the role of transmitting data from LoRaWAN terminals of various applications to the cloud server through 3G/4G networks or Ethernet.

● The F8926-GW gateway adopts an industrial-grade design, including a highly efficient industrial processor and wireless module, and with the watchdog system, which makes it suitable for industrial uses and capable of keeping stable operation even in harsh environments.

● The F8926-GW LoRaWAN gateway complies with the standard LoRaWAN protocol, and it is suitable for terminals and network servers that comply with that protocol.

● The F8926-GW LoRaWAN gateway has been widely used in the M2M field of the IoT industry chain, including smart grids, smart transportation, industrial automation, etc.

F8926GW LoRaWAN Indoor Gateway SPECIFICATIONS

CHARACTERISTICS
Network Structure	Simple star network topology and support repeater mode
Protocol	LoRaWAN^TM
Class	Class A, Class C
Band	EU433, CN470-510, CN779-787, EU863-870, US902-928, AU915-928, AS923, KR920-923
Urban Communication Distance	3.5km
Output Power	23±2dBm
Sensitivity	-142dBm@LoRa
Bandwidth	125kHz \ 250kHz \ 500kHz
Upstream Channel	8
Downstream Channel	1
Data Rate	ADR
Working Mode	Support full-duplex and half-duplex
Server Report Method	Support 3G/4G or wired-ethernet

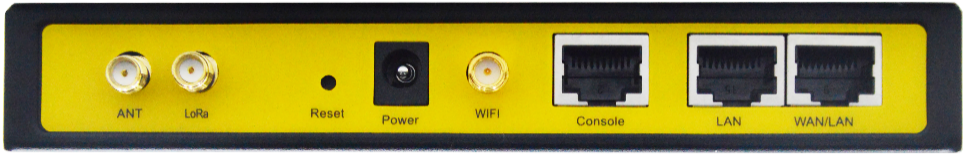

ANTENNA
Cellular	1*Standard SMA female antenna interface, characteristic impedance: 50Ω
LoRa	1*Standard SMA female antenna interface, characteristic impedance: 50Ω
WIFI	1*Standard SMA male antenna interface, characteristic impedance: 50Ω
POWER SUPPLY
Standard	12V/1.5A
Range	DC 9~36V
POWER CONSUMPTION
Stand By	Average Current ≤145mA@12V
Communication	TXD ≤ 450mA@12V RXD ≤ 390mA@12V
PHYSICAL PROPERTIES
Dimensions	157x97x25mm
Weight	510g
Shell	IP30
OTHERS
Operating Temperature	-35~+75ºC
Storage Temperature	-40~+85ºC
Relative Humidity	95% (non-condensing)
Certifications	CE

Model	Description
F8926-GW-L-433	LORA+LTE WIFI GATEWAY
F8926-GW-L-470	LORA+LTE WIFI GATEWAY
F8926-GW-L-868	LORA+LTE WIFI GATEWAY
F8926-GW-L-915	LORA+LTE WIFI GATEWAY
F8926-GW-W-433	LORA+WCDMA WIFI GATEWAY
F8926-GW-W-470	LORA+WCDMA WIFI GATEWAY
F8926-GW-W-868	LORA+WCDMA WIFI GATEWAY
F8926-GW-W-915	LORA+WCDMA WIFI GATEWAY

Specification

F8926GW LoRaWAN Gateway Specification Sheet V3.1.1

User Manual

Four-Faith LoRaWAN Embeded NS User Manual_V1.0.5
