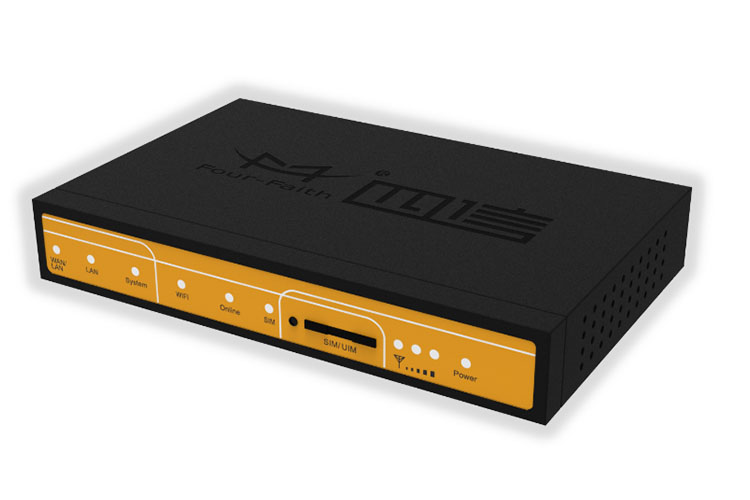

Lan Port Router F3X26 V2

● Certification: FCC, RoHS

● Outer shell: metal, IP30 protection level

● System: watchdog design, complete mechanisms, stable operation

● Abundant ports: RS232, RS485, RS422, Ethernet LAN&WAN, Wi-Fi

● CPU: industrial-grade 32-bit processor & wireless module

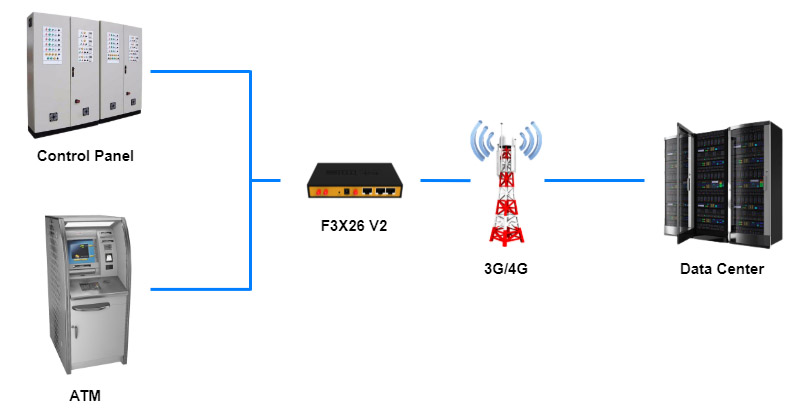

● Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

Trial Sample

Lan Port Router F3X26 V2 Specification

Cellular Specification
Items	Contents
Standard and Band	FDD-LTE: 2600/2100/1800/900/800MHz, 700/1700/2100MHz (Optional) DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS: 850/900/2100MHz EDGE/GPRS/GSM: 850/900/1800/1900MHz GPRS CLASS 10 EDGE CLASS 12
Bandwidth	LTE FDD：DL 100Mbps，UL 50Mbps DC-HSPA+：DL 42Mbps，UL 5.76 Mbps HSPA+：DL 21Mbps，UL 5.76 Mbps HSDPA：DL 7.2Mbps HSUPA：UL 5.76Mbps UMTS：384Kbps
Transmit Power	< 23dBm
Sensitivity	< -97dBm
WIFI Specification
Items	Contents
Standard and Band	IEEE802.11b/g/n
Bandwidth	IEEE802.11b/g: 54Mbps (Maximum) IEEE802.11n: 144Mbps (Maximum)
Security	Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power	20dBm (11n), 24dBm (11g), 26dBm (11b)
Sensitivity	< -72dBm @ 54Mbps

Hardware System
Items	Contents
CPU	Industrial-grade 32 bit CPU
Flash	16MB (Expandable to 64MB)
DDR2	128MB
Interfaces
Items	Contents
WAN Interface	1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
LAN Interface	1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial	1 x RS232 or RS422/485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate: 2400~115200bits/s
LED Indicators	“SIM”, “Online”, “LAN”, “WAN/LAN”, “WIFI”, “System”, “Signal Strength”, “Power”
Antenna Interface	Cellular: 1 or 2 standard SMA female antenna interface, characteristic impedance: 50 Ω WIFI: 1 standard SMA male antenna interface, characteristic impedance: 50 Ω
SIM/UIM Slot	Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD
Power Interface	Standard 3-core locomotive power socket, with built-in phase-reversal and over-voltage protection
Reset Button	Reset router’s configuration to default factory setting by this button
Power
Items	Contents
Input Voltage	DC 12V/1.5A
Accepted Range	DC 5~36V
Power Consumption
Work Mode	Consumption
Standby	4G: 156~170mA@12VDC 3G: 162~201mA@12VDC 2G: 134~193mA@12VDC
Communicating	4G: 310~494mA@12VDC 3G: 294~412mA@12VDC 2G: 174~201mA@12VDC

Physical Properties
Items	Contents
Casing	Metal casing, IP30 protection level, suitable for most industrial control applications.
Dimensions	157x97x25 mm (excluding antennas and mountings)
Weight	440g
Others
Items	Contents
Operating Temperature	-35~+75℃
Storage Temperature	-40~+85℃
Relative Humidity	95% (non-condensing)
