LoRa Sensor Terminal F8L10ST

LoRa Sensor

● Certification: CE

● Abundant ports: RS232, RS485

● Receiver sensitivity: -140dBm@SF12

● Outer shell: PC material, IP68 protection level

● LoRa protocols: LoRaWAN, LinkWAN*, CLAA*

● CPU: industrial-grade 32-bit processor & wireless module

● Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

Trial Sample

Features
Specifications
Download

Four-Faith LoRa Sensor Terminal F8L10ST

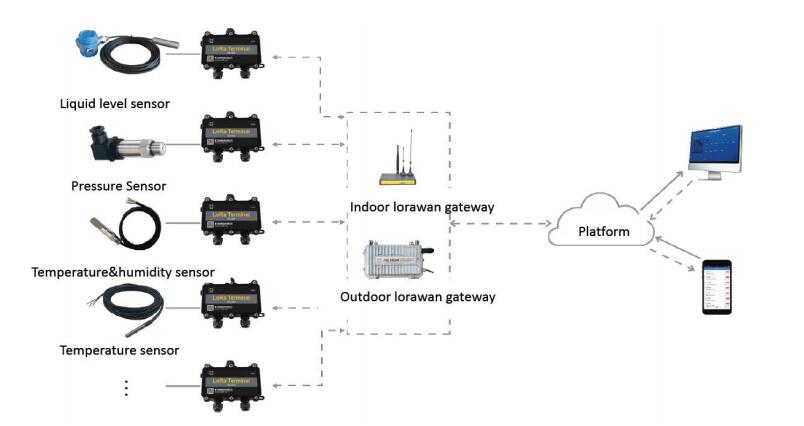

● Four-Faith’s F8L10ST is an IoT wireless data terminal based on LoRa technology, and it plays the role of data transmission through the LoRa network in real IoT-applied solutions and other smart interactive scenarios.

● Equipped with an industrial processor and wireless modules, and with the watchdog system, the F8L10ST LoRa terminal is able to keep its stable operation even in harsh outdoor environments.

● With abundant ports like RS232 and RS485, the F8L10ST LoRa terminal has the capacity to connect multiple devices for data transmission.

● The F8L10ST LoRa terminal has been widely used in the smart grid, smart transportation, industrial automation, meteorology, etc.

Product Specification

LoRa Parameters
Items	Contents
Band	EU433, CN470-510, CN779-787, EU863-870, US902-928, AU915-928, AS923, KR920-923
LoRa Protocol	LoRa private, LoRaWAN®, CLAA, LinkWAN
Communication Protocol	Modbus-RTU, Transparent transmission
Urban Communication Distance	1Km
Line-of-sight Distance	3.5km
Transmit power	19±1dBm
Communication Bandwidth	6 level configurable (0.3, 0.6, 1.0, 1.8, 3.1, 5.5 Kbps)
Sensitivity	-140dBm@SF12

Specification

F8L10ST Series Sensor Terminal Specification V2.0.0
