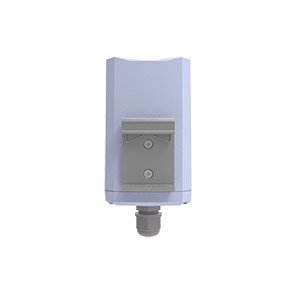

LoRaWAN Sensor Terminal FST200

LoRaWAN Sensor

● Certification: CE, FCC

● Standard ports: RS232, RS485, 2 I/O, 2 ADC

● Outer shell: ABS+PC, IP67 waterproof & dustproof

● CPU: industrial 32-bit processor & wireless module

● Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

Trial Sample

Features
Specifications
Download

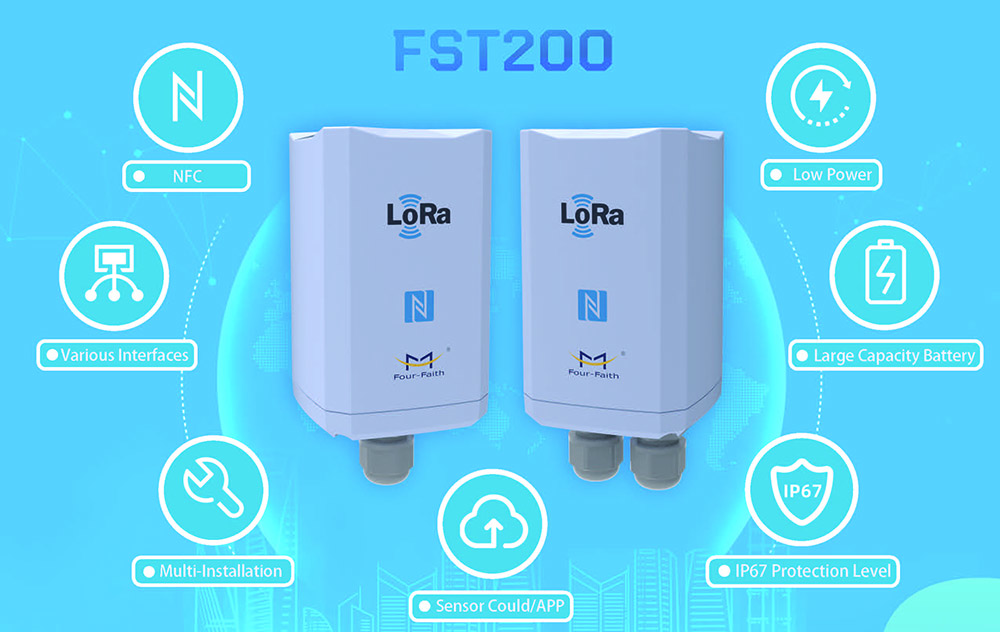

Four-Faith LoRaWAN Sensor Terminal FST200

● Four-Faith's FST200 is a wireless data transmission terminal based on LoRa technology. It adopts a self-developed LoRa module with ultra-low power consumption, and with an IP67 protection level of waterproof and dust-proof, the FST200 terminal is able to keep the stable operation even in harsh outdoor environments.

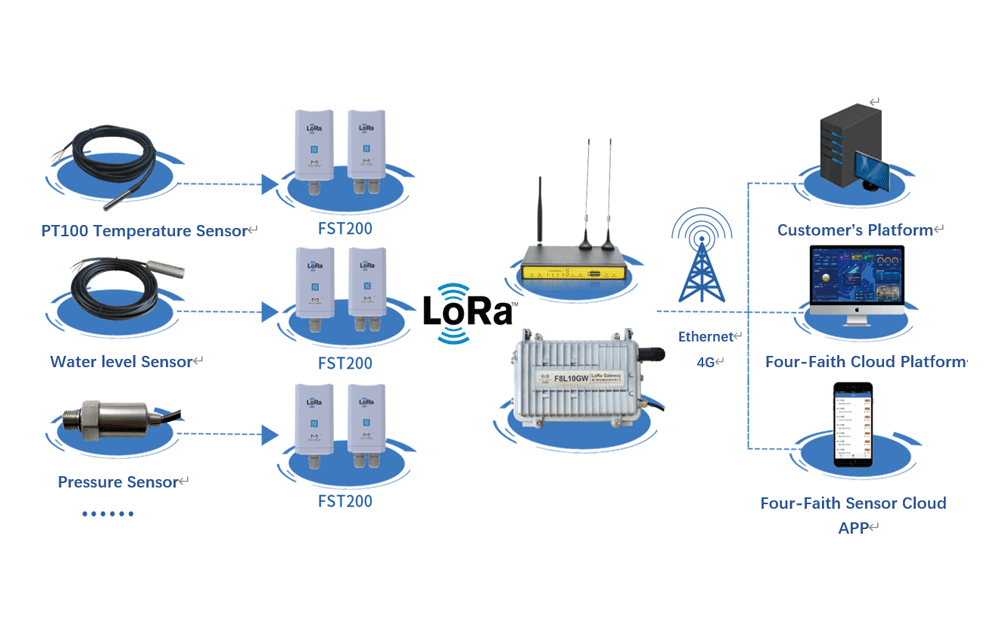

● With standard IoT ports including RS232, RS485, and Type-C, the FST200 LoRaWAN terminal has the capacity to connect multiple sensors for data transmission.

● The FST200 LoRaWAN terminal has been widely used in intelligent fields like smart buildings, smart cities, and environmental monitoring, etc.

Product Specification

Characteristics
Items	Contents
Frequency	433/470/868/915MHz
Protocol	Private protocol, LoRaWAN^® protocol *
Indoor Communication Distance	Penetrates 10 floors
Outdoor Communication Distance	5 Km
Operating Temperature	FST100-00XA: -20~+60℃（-4~+140℉）
	FST200-00XC :-35~+75℃（-31～+167℉）
Power Supply Method	FST100-00xa: Built-in 3.6V/19000mAh lithium battery (Disposable)
	FST200-00xc: Supplies power from the DC power adapter. The default value is 12V/1.5A
Receiving Current	≤10.5mA, (SF=9@20dBm)
Note: FST200-00XA/FST200-00XC, where X represents frequency band L and H, FST200-00XA low-power consumption product, FST200-00XC normal power consumption product; * means under development
Power Consumption
Items	Contents
Transmitting Current	FST200-00XA:<142mA@3.6V
	FST200-00XC:<69mA@12V
Receiving Current	FST200-00XA:<14.9mA@3.6V
	FST200-00XC:<7.2mA@12V
Sleep Mode Current	FST200-00XA:<14uA@3.6V
3.3V Output Load	FST200-00XA:<100mA@3.6V
12V Output Load	FST200-00XA:<80mA@3.6V
Note: 1, FST200-00 XA/FST200-00XC, where X represents the bandwidth H and L, FST200-00XA is low-power consumption product, FST200-00XC normal power consumption product. 2, 3.3V and 12V output load is single channel output load 3, Power test is without sensor test power consumption

Interfaces
No.	Content	Description
1	RX	RS232 Input
2	TX	RS232 Output
3	GND	Ground
4	B	RS485 Native
5	A	RS485 Positive
6	D2	Digital signal input and output (0-3.3V)
7	D1	Digital signal input and output (0-3.3V)
8	A2	Current acquisition analog signal input (0-20mA), maximum 5V input
9	A1	Voltage acquisition analog signal input (0-5V)
10	V3.3	Output DC is 3.3V and the maximum current is 100mA
11	GND	Ground
12	V12	Output DC 12V, maximum current 80mA
13	GND	Ground
14	CHARGE	The positive terminal of the adapter connects to this pin. The voltage range is 5 to 36V, 12V is recommended. Only applicable to FST200-00XC series product
Note: PT100 interface is optional
Hardware
Item	Content
CPU	Industrial grade 32-bit communication processor
Flash	128KB
SRAM	16KB0
Other
Item	Content
Shell	PC+ABS material, anti-exposure, anti UV, anti-aging, impact resistance, protection grade IP67
Dimension	130x64x64mm (Excluding antenna and mounting parts)
Installation	Wall mount (Default), din-rail and pole-mount (Optional)
Flame Resistance	UL94V-0
Weight	FST200-00XA：280g
	FST200-00XC：180g

Order Information

Products	Frequency	Description
FST200-00LA	410-510 MHz	Battery Power Supply
FST200-00HA	863-928 MHz	Battery Power Supply
FST200-00LC	410-510 MHz	DC Power Supply
FST200-00HC	863-928 MHz	DC Power Supply

Specification

FST200 Sensor Terminal Technical Specification V2.0.0
